Fig. 01 Custom shade match to determine most esthetic outcome.

Fig. 02 Denotes post temporary removal showing a large gap between Nos. 8-9 as well as Nos. 7-8.

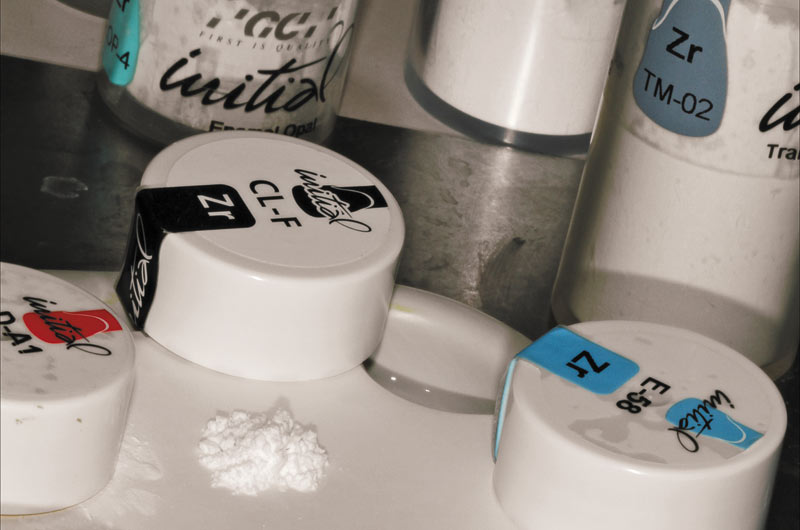

Fig. 03 GC Initial porcelain was utilized followed by an 810˚ Celsius body bake.

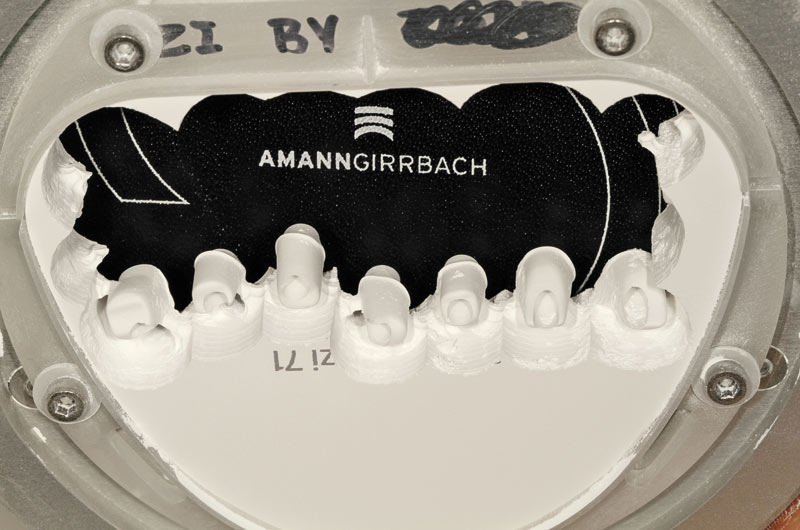

Fig. 04 The zirconia abutment produced using the Motion Mill 2.

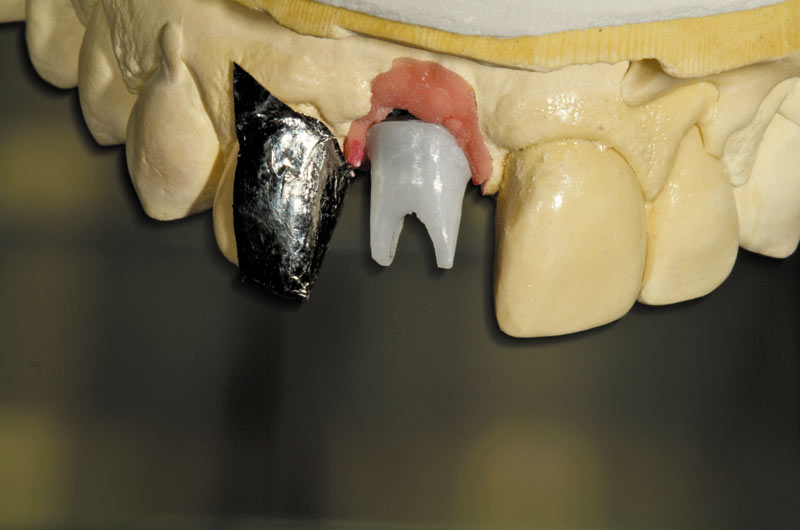

Fig. 05 Using platinum foils 0.001 thickness, No. 7 is simply wrapped.

Fig. 06 Build up with CL-F.

Fig. 07 Try-in of abutment before removal of foil to establish final fit.

Fig. 08 Inserted No. 8 in bisque bake stage to make sure that the modifications were successful.

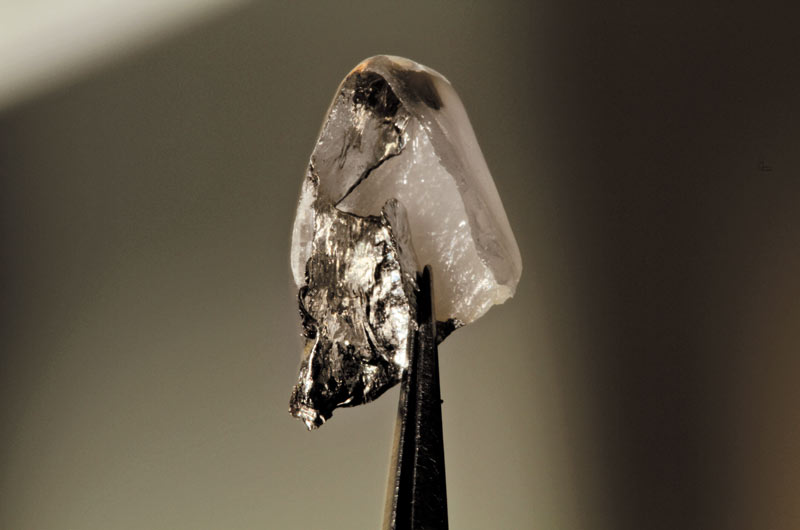

Fig. 09 Removal of foil.

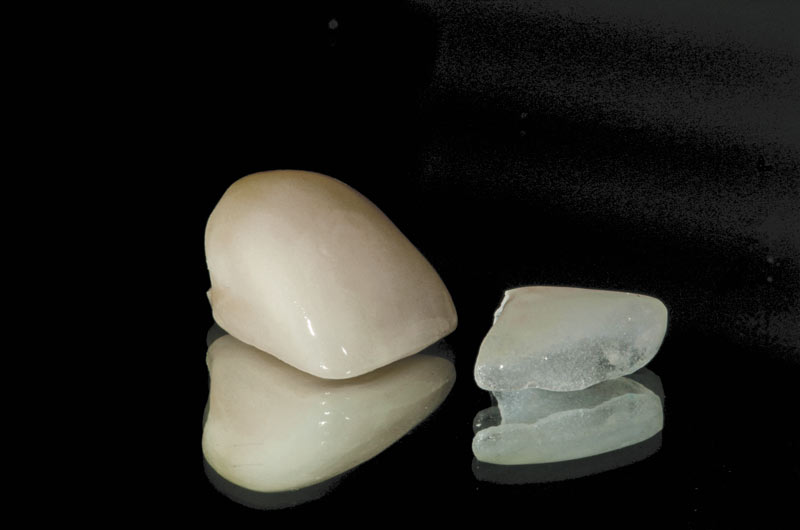

Fig. 10 No-prep veneer and zirconia crown; ready for final insertion.

Fig. 11 Crown delivered for try-in but still was in need of a touch up adjustment to the shade.

Fig. 12 Try-in no-prep veneer. Notice the high translucency in the final restoration.

Fig. 13 Try-in of final restorations.

Fig. 14 Notice the beautiful harmonious shade and symmetry.

Fig. 15 Side view of final restoration.
