DLP

Fig. 01 Initial radiograph.

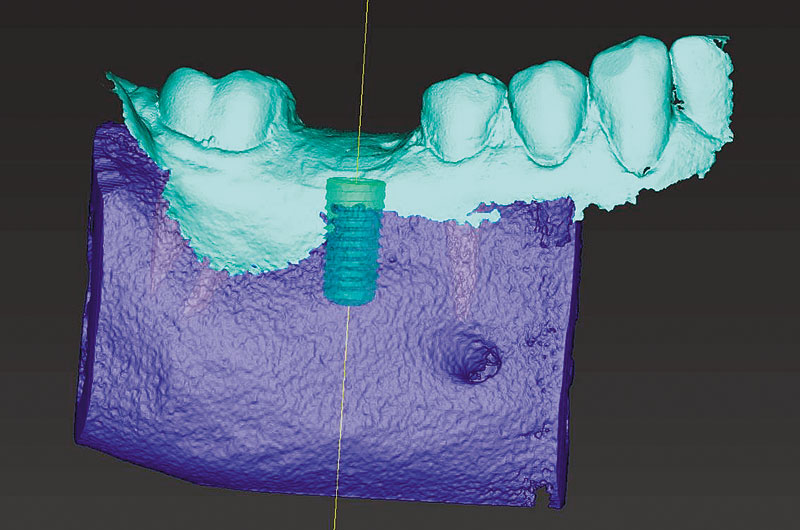

Fig. 02 Fusion of surface scan with CBCT in coDiagnostiX.

Fig. 03 Virtual abutment and restoration for evaluation of implant location.

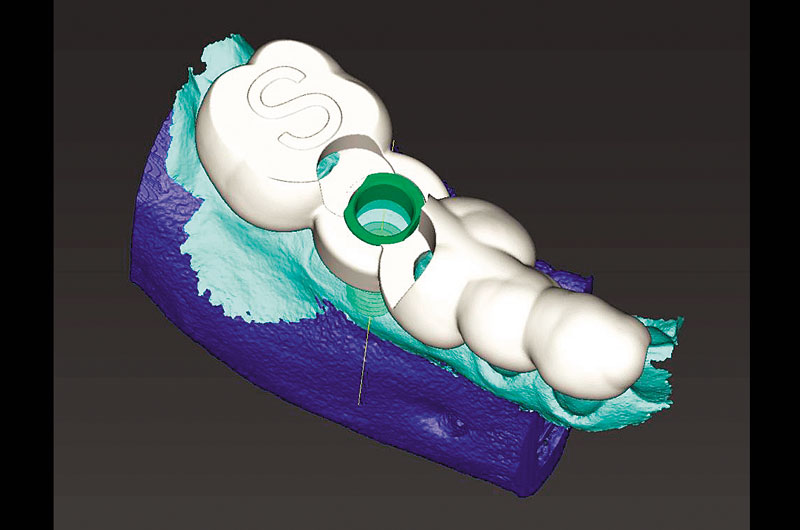

Fig. 04 Designed surgical guide.

Fig. 05 Guided surgery using Straumann Guided Surgery.

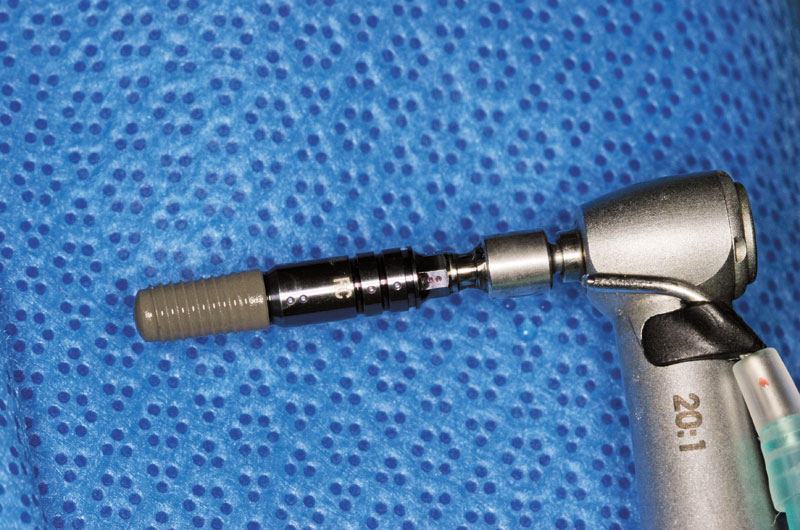

Fig. 06 Straumann bone-level guided implant. Note the special driver to accommodate placement through the guide.

Fig. 07 Guided implant after placement through guide. Note the driver has not been removed.

Fig. 08 Powdering of Straumann Scanbody for 3M True Definition Scanner. Note the powdering is slightly heavier than generally recommended.

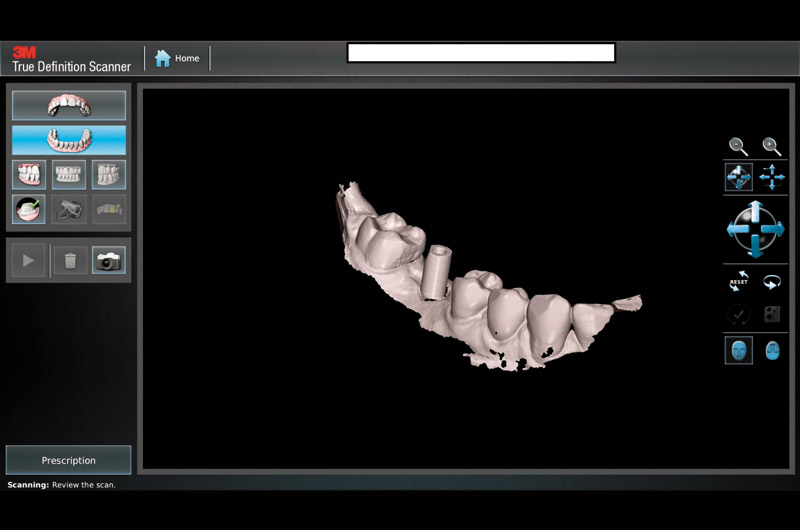

Fig. 09 Screenshot showing virtual impression.

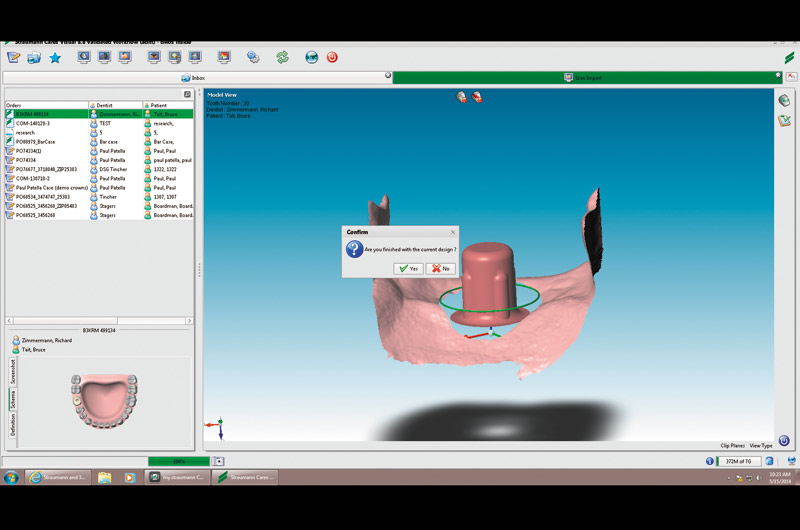

Fig. 10 After receiving the data from the 3M True Definition Scanner, the Straumann Variobase Abutment is seen in the CARES Visual Software.

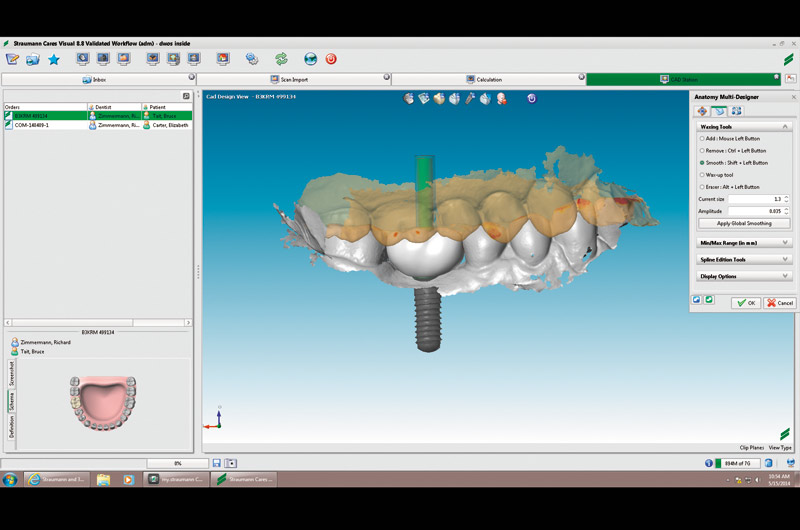

Fig. 11 Fabrication of CARES zerion HT crown over the Straumann Variobase Abutment in CARES Visual Software.

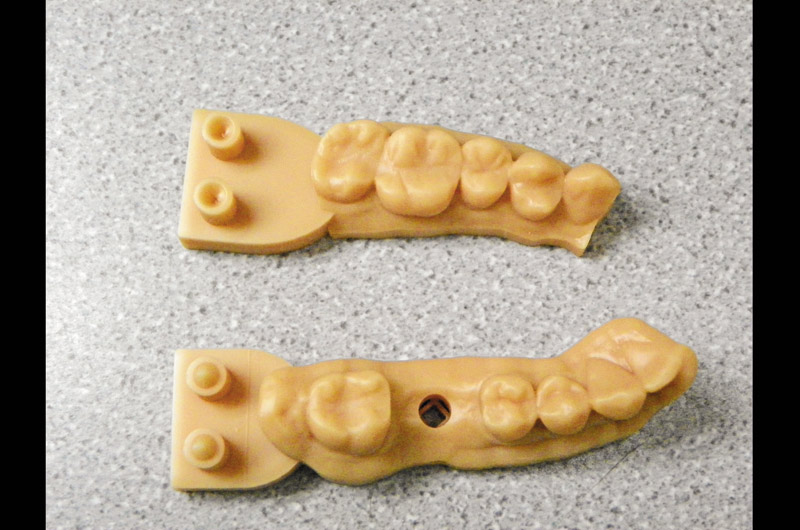

Fig. 12 Printed model from Innovation MediTech with socket for Straumann repositionable implant analog.

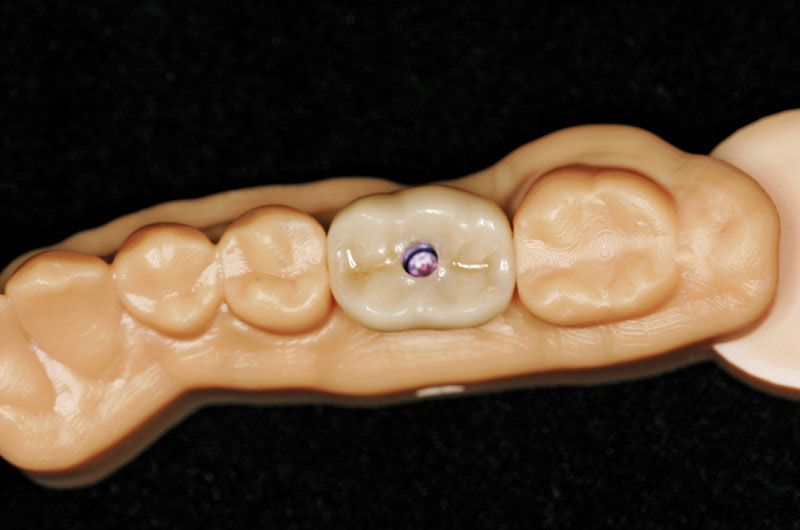

Fig. 13 Finished CARES restoration on printed model from Innovation MediTech.

Fig. 14 Occlusal view of restoration at delivery.

Fig. 15 Lateral view of restoration.
