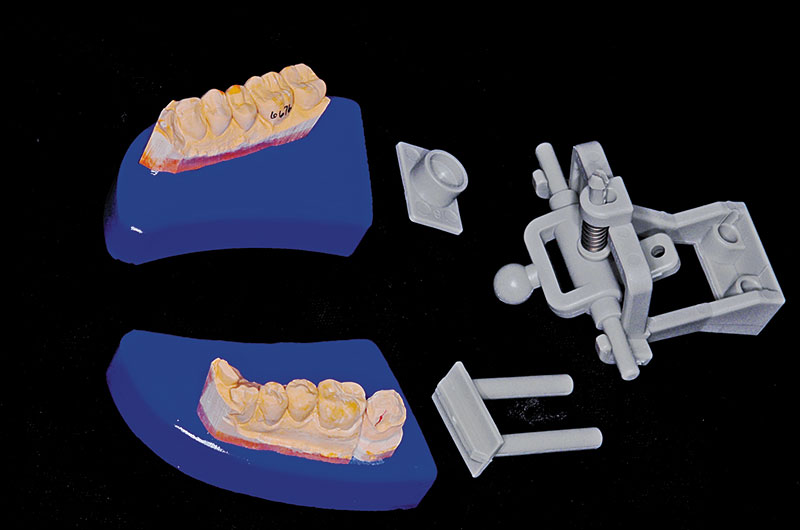

Fig. 01 The components to the Wondertech Articulators

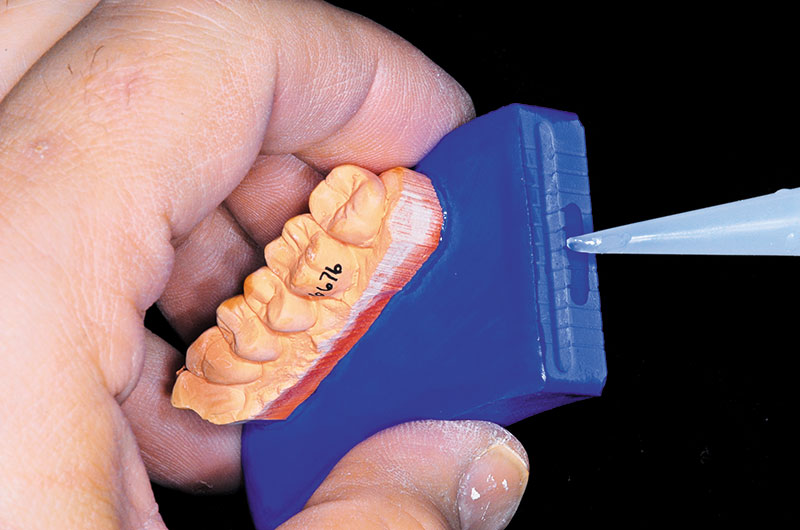

Fig. 02 Apply small amount of adhesive to model base

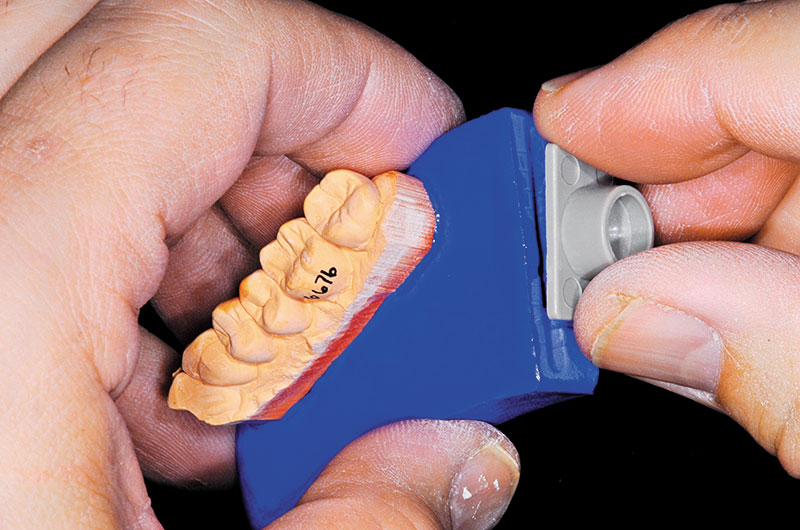

Fig. 03 Center upper ball receiver attachment

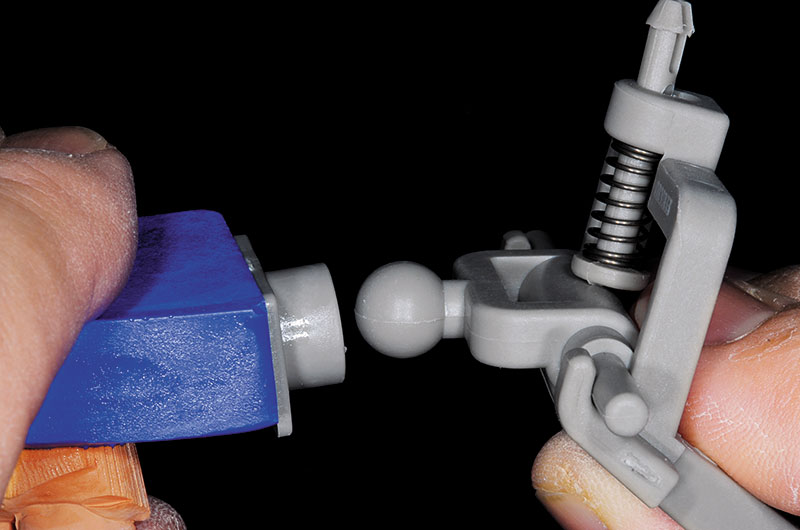

Fig. 04 Assemble ball joint and articular base together. Snap ball joint into ball receiver.

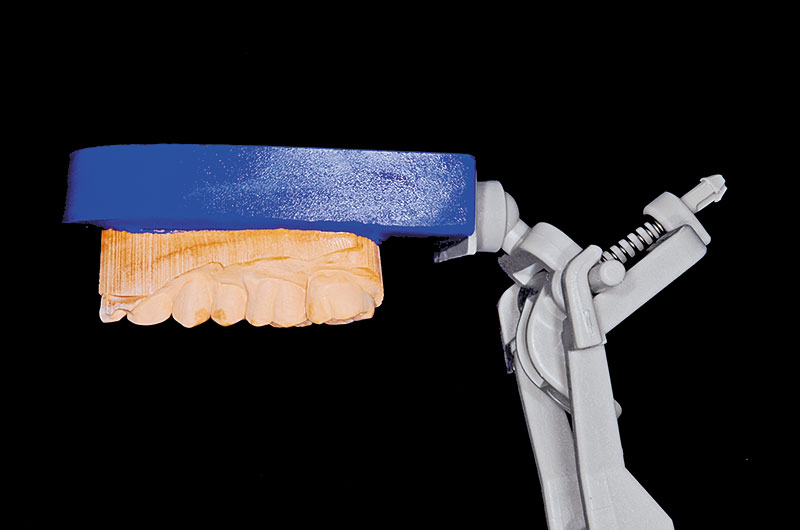

Fig. 05 Upper model assembled

Fig. 06 Slide lower arm assembly into articulator base

Fig. 07 Place bite or triple tray onto model

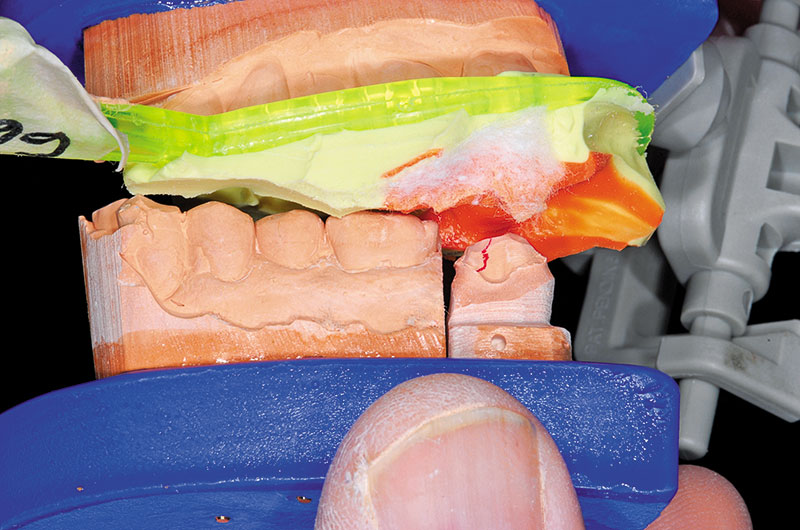

Fig. 08 Set bite

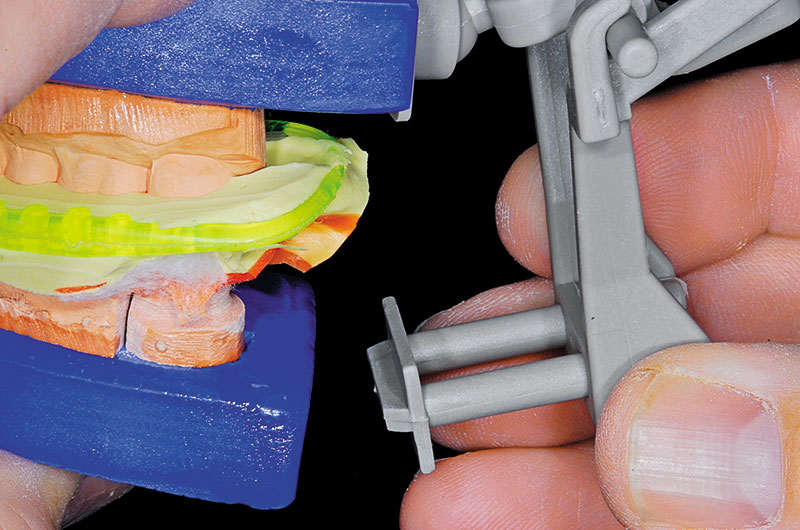

Fig. 09 Place lower assembly into place. The articulator will move around through the ball joint to aid in articulation.

Fig. 10 Glue lower assembly onto lower model

Fig. 11 Glue upper ball joint together

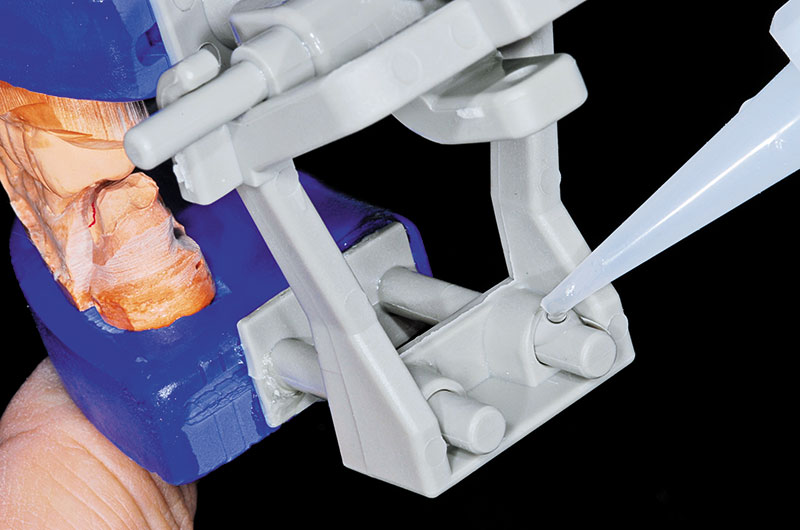

Fig. 12 Glue lower assembly onto articulator base

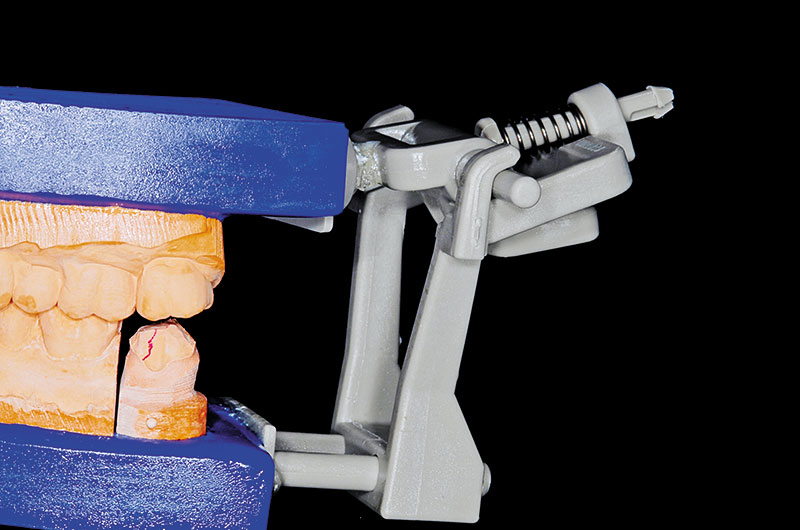

Fig. 13 Wondertech Articulator fully assembled
