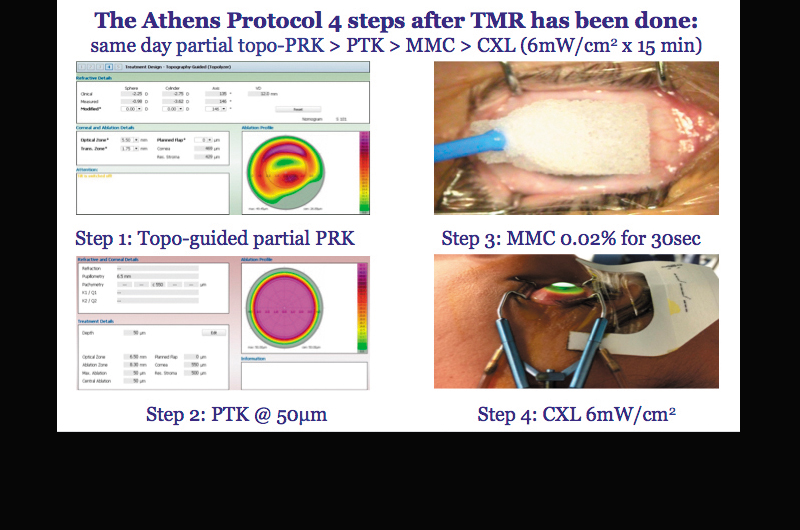

(FIGURE 1) For the basic steps of the Athens Protocol procedure, go to OphthalmologyTimes.com/AthensProtocol

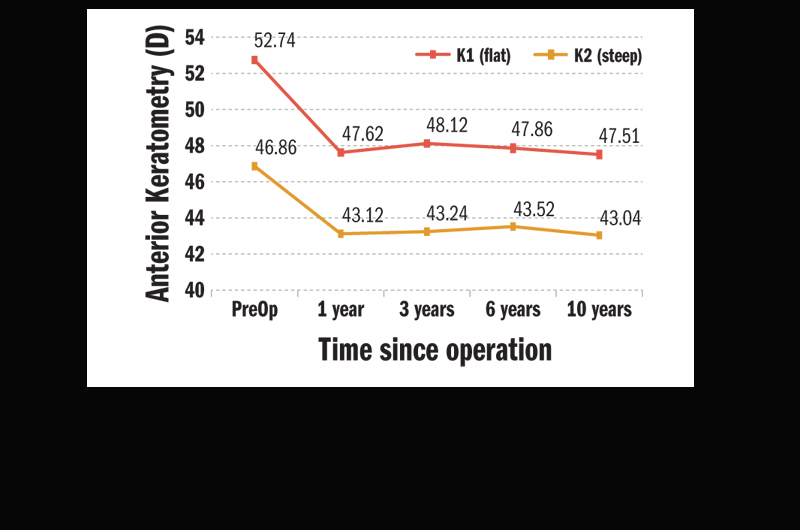

(FIGURE 2) Anterior keratometry (K1 flat and K2 steep) as measured by the Scheimpflug device preoperatively up to 10 years postoperatively. All units in keratometric diopters (D).

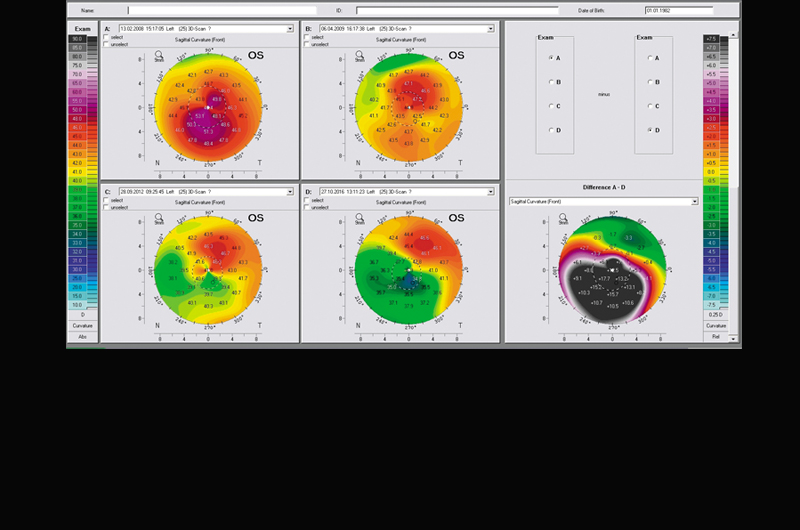

(FIGURE 3) A. Preoperative Pentacam tomography reveals inferocentral steep cone (Kmax: 53.10 D) (Rx: –0.50 –2.00@135, CDVA 20/20) B. One-year following AP/OS, the Pentacam shows superior steepening Kmax: 47.2 D with a reduced inferocentral reading K: 43.50 D. Rx: +1.00 –0.75@140 CDVA: 20/32, UCDVA: 20/40 C. At 4 years postoperatively, Pentacam reveals an inferocentral flattening K:39.30 D while the superior corneal power remains stable Kmax: 46.70D. Rx: +1.50 –2.25@135 CDVA: 20/32, UCDVA: 20/40 D. At 10 years postoperatively, the inferocentral corneal power shows flattening Kmin: 34.80 D, meanwhile the superior Kmax readings are 46.60 D. Rx: +4.75 –1.75@75 CDVA: 20/50, UCDVA: 20/63. (Table and figures courtesy of Dr Joanna Kontari)
